SKU:46872440

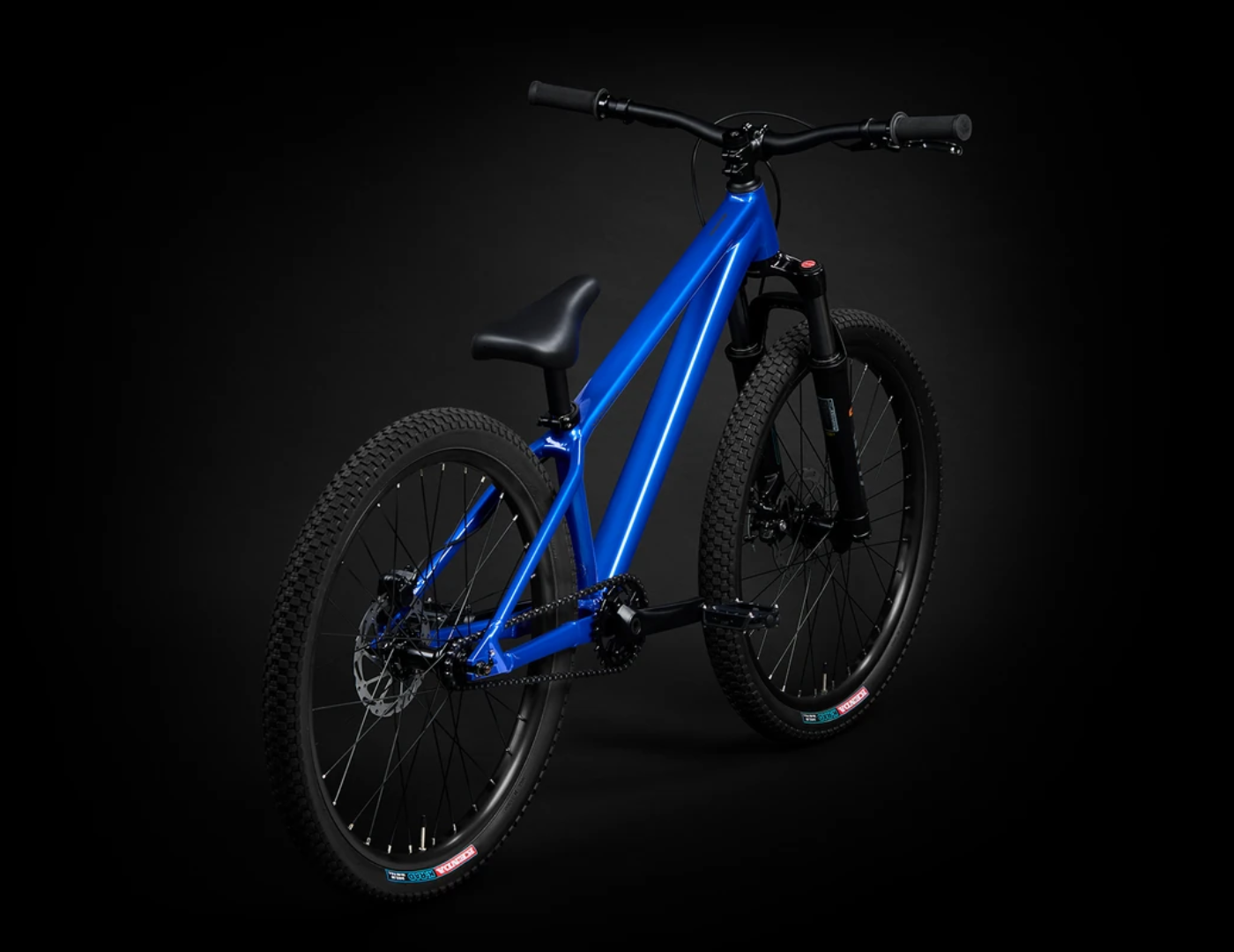

The second generation Youth Rampage is purpose-built for big air, taking inspiration from two decades of riding and building dirt jumpers with a light but strong frame and balanced, agile geometry for young riders finding their flow.
| FRAME | Aluminum DJ 24" |
| FORK | RST Dirt ,80 mm, 9x100mm |
| HEADSET | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| GRIPS | Norco JR Single lock on, 115mm length |

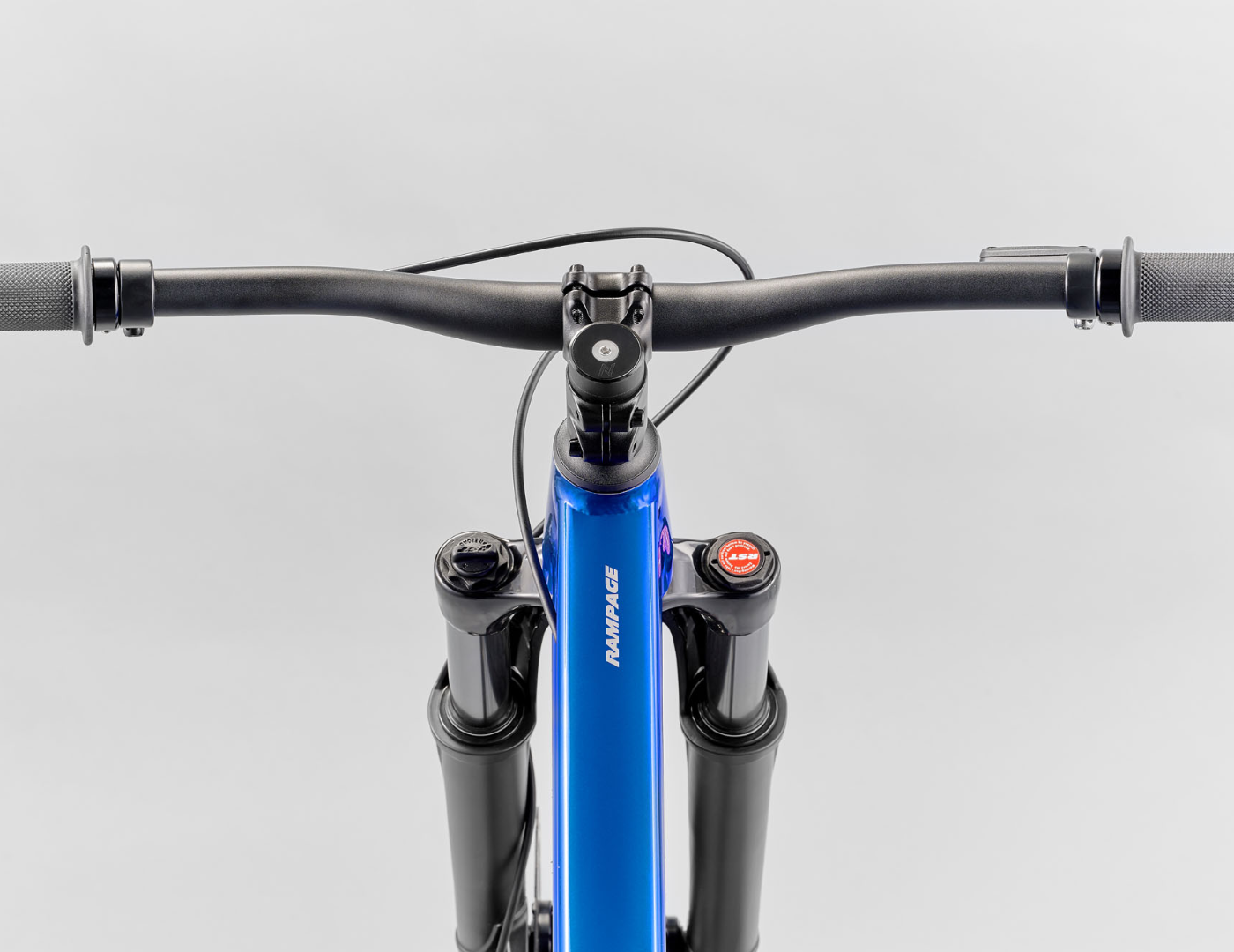

| HANDLE BAR | Norco 6061 alloy, 680mm, 30mm rise |
| STEM | Norco, 40mm Length, 31.8 Clamp |
| SEAT POST | Norco Pivotal, 27.2mm ID, 200mm Length |
| SADDLE | Norco Pivotal |
| FRONT BRAKE | Tektro MD-280, Mechanical, Resin pads |
| FRONT BRAKE ROTOR | TR 160-24, 160mm , 6 bolt |
| REAR BRAKE | Tektro MD-286, Hydraulic, Resin pads |
| REAR BRAKE ROTOR | TR 160-24, 160mm , 6 bolt |
| BRAKE LEVERS | Tektro Alloy |
| CASSETTE | Single Speed, 14T |
| CHAIN | KMC Z1 natural black 1/2 x 3/32" single speed chain |
| CRANKSET | Prowheel 3pc, 30T, 140mm |
| BOTTOM BRACKET | Square Taper, 73mm, 122.5mm axle |
| FRONT HUB | KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt |
| REAR HUB | KT sealed bearing, 10x135mm, 32H, Single Speed, 14T, 6 bolt |
| SPOKES/NIPPLES | Stainless Steel, 14g |
| RIMS | Alex MUS 30, 32h, F/R-24", 23.5mm ID |
| FRONT TIRE | Kenda K-Rad, 24x2.30", Wire Bead |
| REAR TIRE | Kenda K-Rad, 24x2.30", Wire Bead |
| Travel (mm front) |
| 80 |
| Reach |
| 375 |
| Stack |
| 524 |
| HTA Head Tube Angle |
| 68.5 |
| OS Fork Offset |
| 40 |
| ST Seat Tube Length |
| 290 |
| STA Effective Seat Tube Angle |
| 75 |
| RC Rear Centre Length |
| 353 |
| BB Bottom Bracket Drop |
| 15 |
| BBH Bottom Bracket Height |
| 298 |
| HTT Horizontal Top Tube |
| 515 |
| WB Wheelbase |
| 971 |
| SOH Standover |
| 559 |
| HT Head Tube Length |
| 100 |
| Trail |
| 80 |
| Maximum Post Insertion |
| 236 |
| Stem Length |
| 35 |
| Crank Length |
| 140 |
| Tire Size |
| 2.35" – 2.5" |
